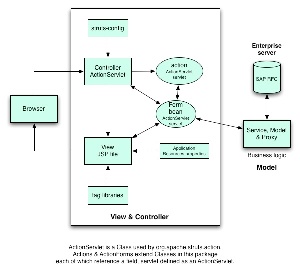

M-V-C Diagram (Model, View & Control)

Model

Supported Technologies

The IS&T-licensed SourceLabs SASH Stack (Spring, Axis, Struts, Hibernate) comprises the standard technologies for use in insideMIT Java applications.  In addition to SASH Stack compliant versions of Spring and Hibernate, Open Enterprise Foundation's SAP Java Connector (as used within the sap2java API) is used for Model components.

Specifications

View

The View architecture and design standards are maintained by the IS&T insideMIT Design and Development (IDD) team.  IDD's documentation describes implementation rules for such View technologies as Java Server Pages (JSP), JSTL, and Apache Struts Tiles and Tag Libraries.  Please refer to their documentation for specific View standards.

Controller

Supported Technologies

The IS&T-licensed SourceLabsSASH Stack (Spring, Axis, Struts, Hibernate) comprises the standard technologies for use in insideMIT Java applications.  A SASH Stack compliant version of Apache Struts is used for Controller components.

Specifications

Revision History

(latest on top)

Date

Documentation Updated By

Description of Change

16-Aug-2007

Amy King

Original Version
