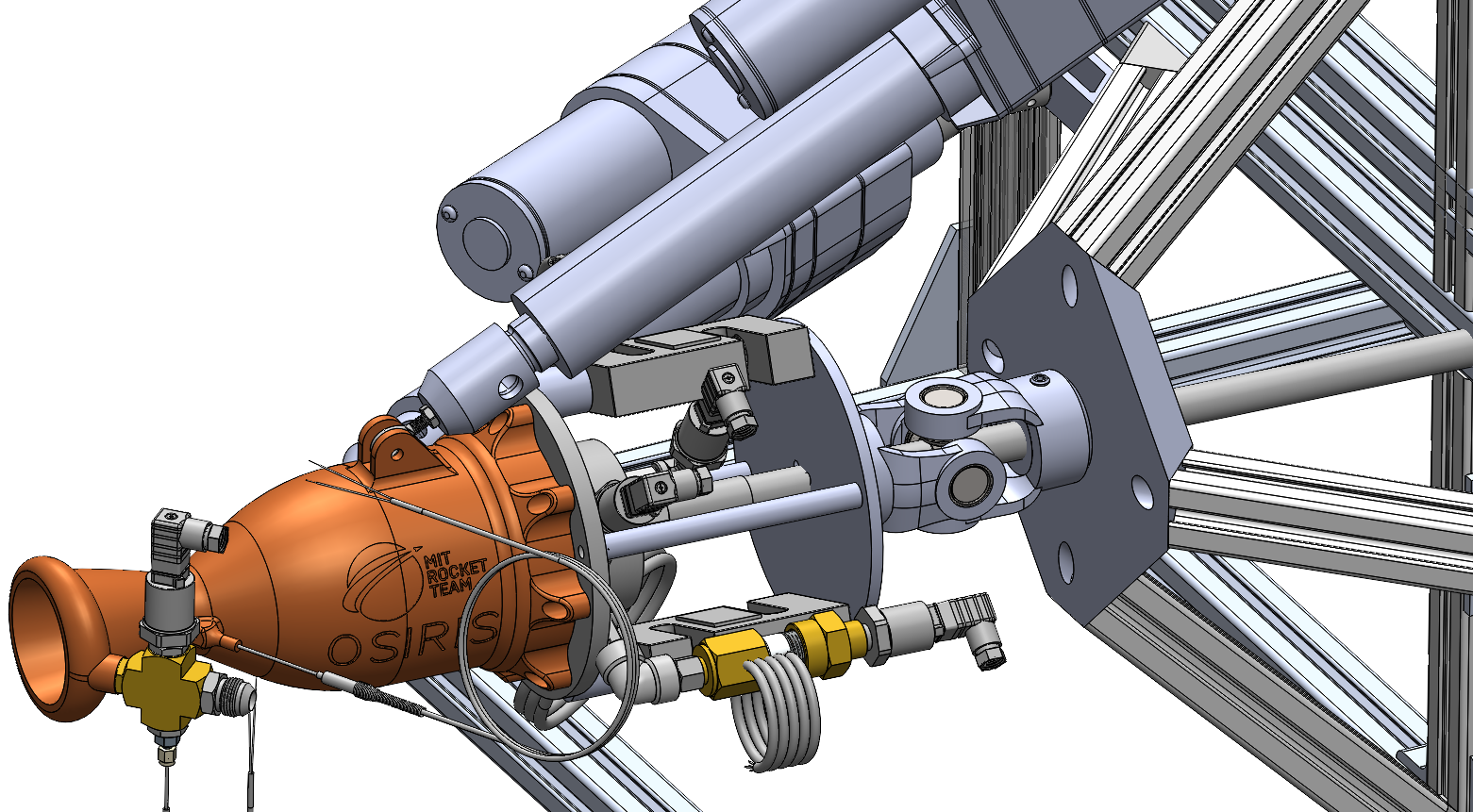

Project Osiris is a regeneratively cooled engine with active thrust vector and throttle control capability.

Engine Requirements:

  • The engine shall provide a thrust of at least 2.23 kN.
  • The engine shall be capable of throttling down to 40% of nominal thrust, hold constant for 2 seconds, and then return to nominal thrust.
  • The engine shall be capable of thrust vectoring at least 7 degrees in all directions.
  • The engine shall be capable of completing a circular thrust vector profile in at most 10 seconds.
  • The engine should be completed over a one year design, manufacture, and test cycle.
  • The engine should be capable of a minimum of 30 hot fires without requiring major refurbishment or component replacement.

Engine Specifications:

  • Thrust: 2.65 kN
  • Propellants: Nitrous/IPA
  • Mixture Ratio: 2.75
  • Burn time: ~14 seconds (full throttle)
  • Throttle Range: 40-100%
  • Chamber Material: GrCop-42
  • Total impulse: 38754 Ns

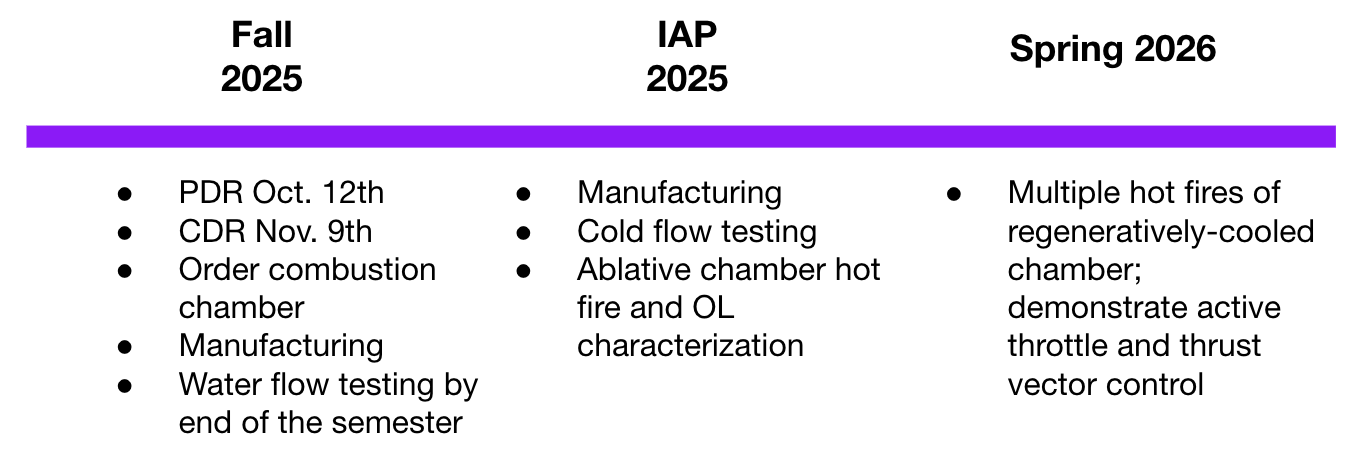

Project Timeline:


  • No labels
